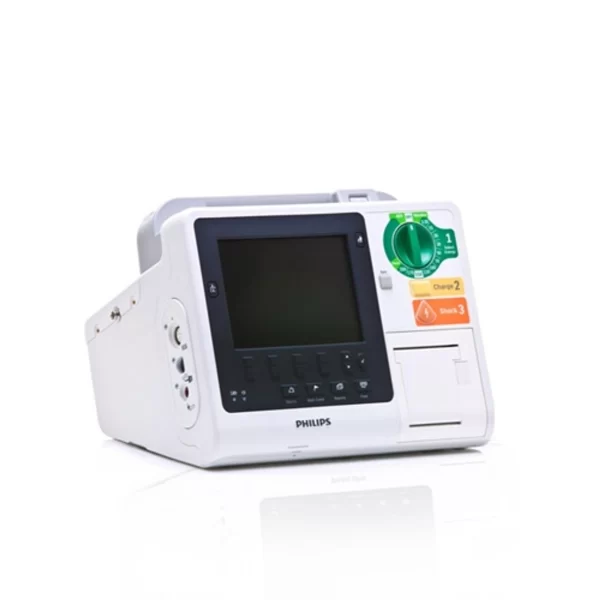

Philips Heartstart XL Plus


For Rent or Purchase

Condition: New


Designed for Resuscitation and Rapid Response Teams, the Philips HeartStart XL+ Defibrillator/Monitor helps staff respond to patients throughout the hospital.

• Philips SMART Biphasic therapy

• Quick Shock in AED mode

• Customizable energy settings and defibrillation

• Patient monitoring measurements

• Synchronized cardioversion

• Optional Noninvasive pacing

• Automated self-tests

• HeartStart Adult/Child or
Infant defibrillation pads

• Large multi-color display

• Integrated strip chart

Display Screen:

  • Size: Approximately 6.5 in (16.5 cm) diagonal viewing area
  • Type: Color TFT LCD
  • Resolution: 640 x 480 pixels (VGA) with 32 brightness levels per color
  • Sweep Speed: 20 mm/s nominal (stationary trace; Sweeping erase bar) for ECG and SpO2
  • Wave Viewing Time: 5.2 sec


  • Width: 11.6 in/29.6 cm
  • Depth: 10.9 in/27.9 cm
  • Height: 9 in/23 cm
  • Weight: 14.7 lbs/6.6 kg, includes one battery, one new roll of paper and one pads cable
  • Standard Operator Position: Within 3 feet (1 meter) of the device


  • Waveform: Biphasic Truncated Exponential, Waveform parameters adjusted as a function of patient impedance
  • Shock Delivery: Via multifunction electrode pads or paddles
  • Shock Series: Configurable energy escalation in a series
  • Leads Off Sensing and PCI Sensing For Pads/Paddles: Apply 500nA rms (571Hz); 200uA rms (32KHz)
  • Charge Time: 3 seconds to the recommended adult energy level (150 Joules) with a new fully-charged battery installed
  • Patient Impedance Range: Minimum – 25 ohm (external defibrillation); 15 ohm (internal defibrillation); Maximum – 250 ohm. Actual functional range may exceed these values
  • Power Supply: Rechargeable lithium ion battery; AC power using a protectively grounded outlet


  • Continuous ECG Strip: The Print button starts and stops the strip. The printer can be configured to be run real time or with a 10-second delay. The strip prints the primary ECG lead and a second wave with event annotations and measurements
  • Auto Printing: The printer can be configured to automatically print on Mark Events, Charge, Shock and Alarm
  • Reports: The following can be printed – Event Summary (Long or Short), Vital Signs Trends, Operational Check, Configuration, Status Log, Device Information
  • Speed: 25 mm/s with an accuracy of ±5%
  • Amplitude Accuracy: 5% for offset voltages of ± 300 mV at 5Hz
  • Paper Size: 50 mm wide x 30 m long


  • Type: Rechargeable, lithium ion; See battery label for capacity information
  • Weight: Approximately 1.5 lbs (.68kg)
  • Charge Time, Device Off: With the temperature between 0-35° C (32-95° F), less than 3 hours to 100% capacity; Less than 2 hours to 80% capacity
  • Life: Approximately 3 years
  • Capacity: With a new fully charged battery, at 20 °C (68 °F), one of the following: At least 3 hours of monitoring (ECG and SpO2 monitored continuously and NBP sampled every 15 minutes) followed by 20 full-energy charge/shocks; OR at least two hours of pacing (180ppm at 140mA with 40 msec pulse width) while monitoring (ECG and SpO2 monitored continuously and NBP sampled every 15 minutes) followed by 20 full-energy charge/shocks; OR at least 175 full energy charge/shocks
  • Battery Indicators: Battery gauge on battery, capacity indicator on display, power indicators on front of device; flashing RFU indicator, chirp and Low Battery messages on the display for low battery condition. When a low battery message first appears there is still enough energy for at least 10 minutes of monitoring and 6 maximum energy discharges
  • Battery Storage: Storing the battery for extended periods at temperatures above 40° C (104° F) reduces battery capacity and degrades battery life


  • Operating Temperature: 0°C to 45°C (32°F to 113°F)
  • Storage Temperature: 20°C to 70°C (-4°F to 158°F)
  • Humidity: Up to 95% relative humidity
  • Atmospheric Pressure Range: 1014 mbar to 572 mbar (0 to 15,000 ft; 0 to 4,500 m)
  • Operating Shock: Half-sine waveform, duration ≤11 ms, acceleration ≥ 15.3 G, 3 shocks per face
  • Nonoperating Shock: Trapezoidal waveform, acceleration 30G, velocity change 7.42 m/s ±10% 1 shock per face
  • Water/Solids Ingress Resistance: Meets Ingress Protection level IP21
  • EMC: Complies with the requirements of standard EN 60601-1-2:2002
  • Safety: Meets UL 60601-1 (1st edition), EN 60601-2-4:2003, EN 60601-1:1990
  • Mode of Operation: Continuous
  • AC Line Powered: 100-240 VAC, 50 or 60 Hz, 1-0.46A, Class I Equipment
  • Battery Powered: Minimum 14.4 V, rechargeable lithium ion

Specs and photos may include optional features. Talk to a sales representative for details. All logos, product names and content are trademarks and copyrights of the respective owners. To find the latest reference information on this device, please visit the manufacturer’s website.
